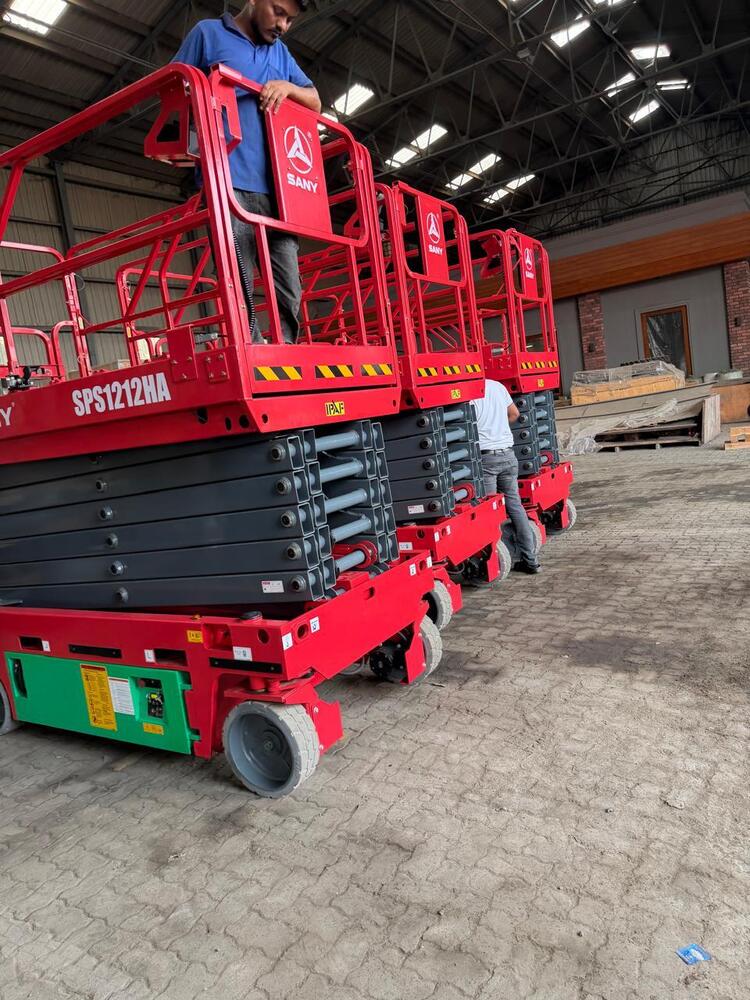

14 Meter Scissor Lift

Get a Price/Quote

MOQ : 1 Unit

14 Meter Scissor Lift Specification

Inclination
Max. 3 (working)

Car Dimension
Approx. 2.48m x 1.15m (platform size)

Load Capacity
320 kg

Voltage
24V DC (Battery powered)

Type
Self-propelled scissor lift

Usage
Indoor and outdoor material handling, maintenance, installation

Noise Level
<70 dB

Material
High-strength steel

Drive Type
Electric motor drive

Power Supply
Electric battery

Speed
0.8 - 3.2 km/h (travel), 3 - 5 m/min (lifting)

Max. Lifting Height
14 meters

Max. Lifting Weight
320 kg

Mechanism Type
Hydraulic powered, self-propelled

Working Temperature
-15C to +40C

Control Device
Proportional control joystick

Safety Device
Emergency stop, safety valves, overload protection

Capacity
320 kg

Charger
Automatic built-in charger (24V/30A)

Stowed Width
1.17 m

Color
Red/Green with safety marking

Platform Entry Height
1.37 m

Battery Capacity
4 x 6V/225 Ah

Platform Height (Max)
12 m

Working Height (Max)
14 m

Ground Clearance
0.1 m (stowed)

Branding
Customizable logo panel

Gradeability
25%

Steering Type
Front wheel

Lowering Speed
2.5 - 4 m/min

Stowed Height
2.85 m

Extension Platform Length
0.9 m (extendable)

Wheel Type
Non-marking solid rubber tires

Stowed Length
2.54 m

Drive Motor Power
2 x 24V/3.5 kW

Turning Radius
0 (inside), 2.2 m (outside)

Weight
3180 kg

14 Meter Scissor Lift Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

More Products in Scissor Lift Category

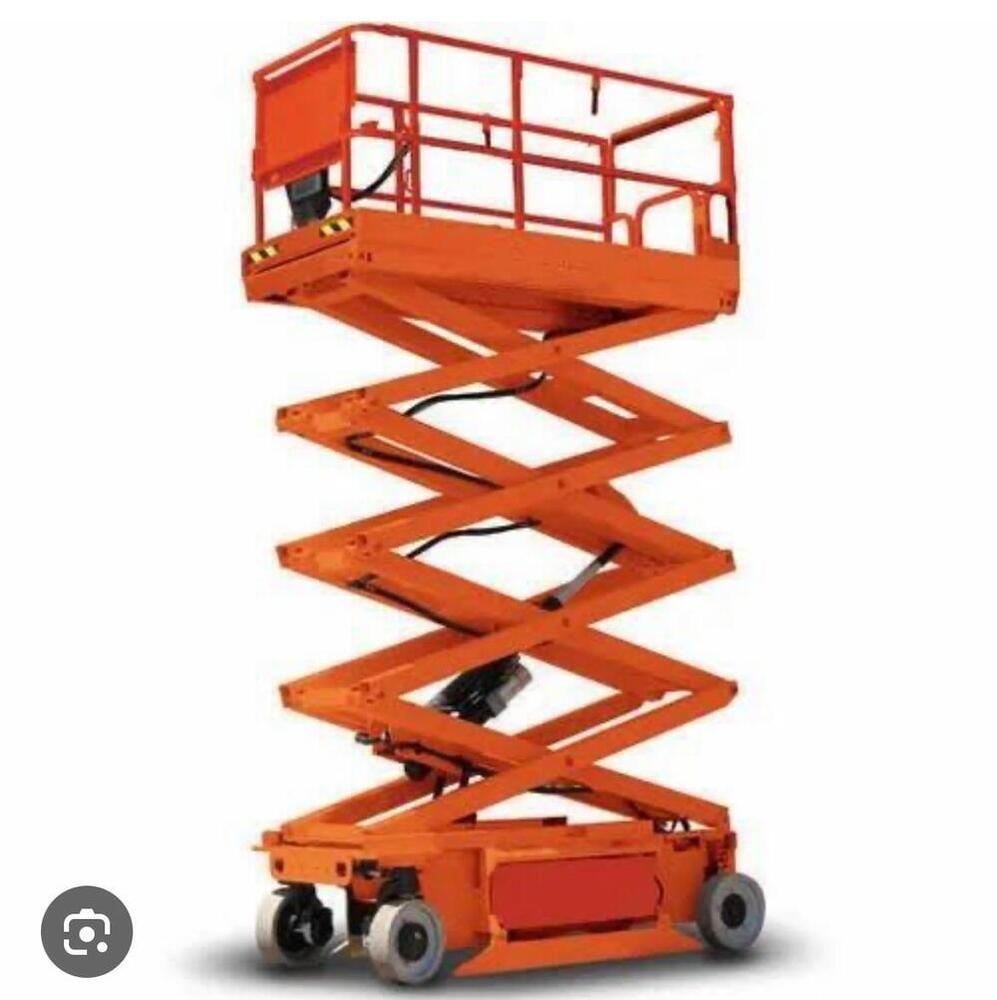

12 Meter Scissor Lift

Minimum Order Quantity : 1 Unit

Speed : 0.84 km/h

Usage : Other, Aerial Work, Maintenance, Construction

Noise Level : 70dB

Control Device : Other, Control Panel (Platform and Ground)

Mechanism Type : Other, Hydraulic Scissor

Get a Price/Quote

Jeni - 18 Mtr Scissor Lift

Minimum Order Quantity : 1 Unit

Speed : 0.81.5 m/s (lifting speed)

Usage : Other, Material handling, Maintenance, Construction

Noise Level : 70 dB

Control Device : Other, Platform and ground dual controls

Mechanism Type : Other, Hydraulic Scissor Mechanism

Get a Price/Quote

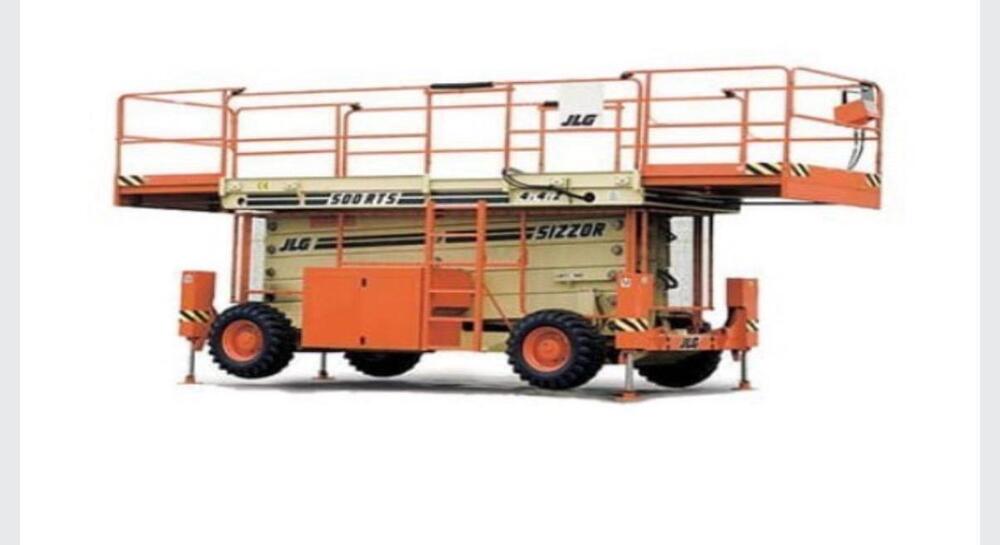

Jlg 500 17 Mtr Scissors Lift

Minimum Order Quantity : 1 Unit

Speed : Platform Lift Speed: Approximately 0.050.09 m/s

Usage : Other, Aerial Work, Construction, Maintenance, Installation

Noise Level : Less than 70 dB

Control Device : Other, Proportional Controls / Joystick

Mechanism Type : Other, Selfpropelled Scissor Lift

Get a Price/Quote

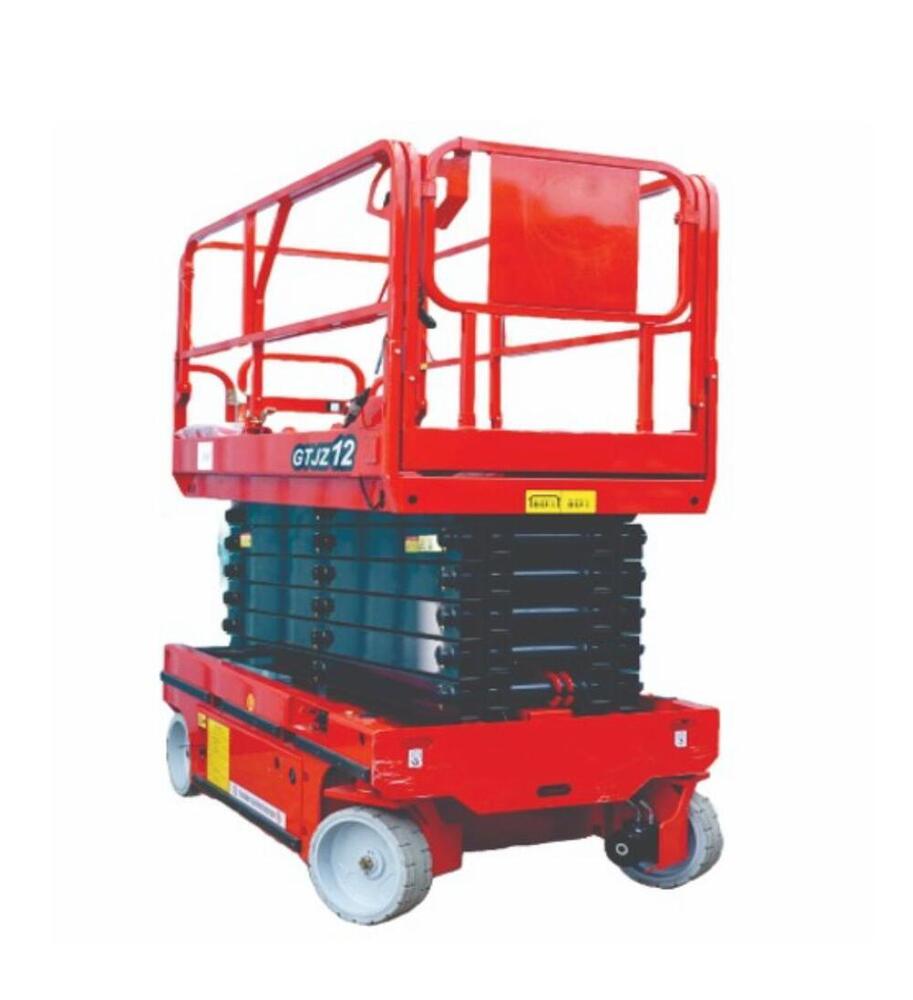

12 Meter MS Scissor Lift

Minimum Order Quantity : 1 Unit

Speed : 26 m/min

Usage : Other, Material Handling, Maintenance, Construction

Noise Level : <70 dB

Control Device : Other, Push Button / Remote

Mechanism Type : Other, Hydraulic Scissor

Get a Price/Quote
